View Issue Details

Jump to NotesJump to History
IDProjectCategoryView StatusDate SubmittedLast Update
0000980T99X171.00 SKB EagleSW Issuepublic2020-10-07 14:032020-10-22 18:22
Reporter(ALTech) Jason ParkAssigned To(ALTech) Jason ParkDue Date
PrioritynormalSeveritys2-severeReproducibilityhave not tried
Status closedResolutionwon't fix
Summary0000980: [BTF][BTS] setsockopt IP_ADD_MEMBERSHIP failed During bts && zap_reset.
Descriptionhi kerwin

Test version : Build date (10/5) +

                     10/4 commit (BTFAML-377] , 9/30(BTFAML-367) 9/29 (BTFAML-364 , BTFAML-341)

we tested with bts.sh & zap_reset. but the box didn't turn on and LED is blinking as red.

i found some print of BTS as setsockopt IP_ADD_MEMBERSHIP failed.

bts && zap_reset command is similar to standby on/ off test . since player is killed and start repeatedly.

but, I don't know why box don't turn on. it is related to network connect problem. or other issue. if you can find some error in a log, please let me know it.



TagsNo tags attached.
Attach Tags

Users monitoring this issue

User List There are no users monitoring this issue.

Activities

(ALTech) Jason Park

2020-10-07 14:03

developer

BFX-AT100_20201006-191952.zip (207,483,616 bytes)

(SW) Kerwin Chen

2020-10-07 15:48

developer   ~0004552

Hi Jason,

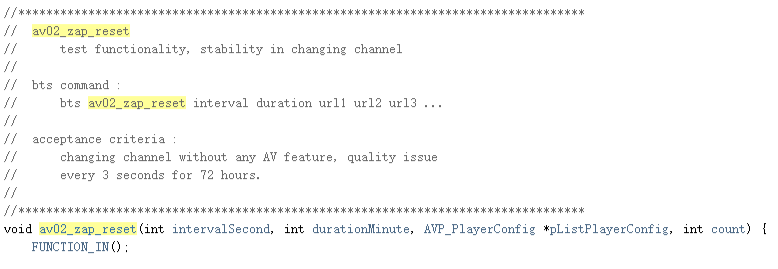

From the function description, I think 'zap_reset' isn't similar to standby on/ off test.

Also, "IP_ADD_MEMBERSHIP " is supported on Smart3.
Otherwise, all BTV channels won't be able to play.
You can see file descriptor is allocated successfully. (logcat.log.0061)

This file handler should be maintained by program developer, not system.
I see an error while program calls IGMP leave. ( logcat.log.0016)
It should be reviewed by SPTek.
Thanks !
============== logcat.log.0016=================
10-07 02:09:24.313 4834 4834 D NoticeManager: NoticeRejoinHandler call
10-07 02:09:24.313 4834 4834 D NoticeManager: start
10-07 02:09:24.313 4834 4834 D NoticeManager: exist Thread and rejoin
10-07 02:09:24.314 4834 4834 D NoticeManager: leaveGroup Error: setsockopt failed: ENODEV (No such device)
10-07 02:09:24.314 4834 4834 D NoticeManager: setThread call
10-07 02:09:24.314 4834 6610 D NoticeManager: Multicast receive Error: Socket closed
10-07 02:09:24.314 4834 6610 D NoticeManager: leaveGroup Error: Socket is closed
10-07 02:09:24.315 4834 16834 D NoticeManager: ip: 239.192.60.11 | port: 49210
10-07 02:09:24.316 4834 16834 D NoticeManager: Multicast receive Error: setsockopt failed: ENODEV (No such device)
10-07 02:09:24.316 4834 16834 D NoticeManager: leaveGroup Error: setsockopt failed: ENODEV (No such device)
...
===============================================

========== logcat.log.0061 =============
10-06 19:09:51.525 3522 3568 D Navigator: [stdvbplayer_makeclientsocket] will multicast join in use set sock opt api
10-06 19:09:51.525 3522 3568 D Navigator: [rtp.c] befor call setsockopt IP_ADD_MEMBERSHIP (think join request send)
10-06 19:09:51.525 3522 3568 D Navigator: [rtp.c] after call setsockopt IP_ADD_MEMBERSHIP (think join request send)
10-06 19:09:51.525 3522 3568 D Navigator: socket : 13
10-06 19:09:51.525 3522 3568 D Navigator: setsockopt SO_RCVBUF to 3000000 bytes
10-06 19:09:51.525 3522 3568 D Navigator: dvb_iptuner_lock: sock-fd=13
....
===============================================

(ALTech) Jason Park

2020-10-12 14:20

developer   ~0004584

hi kerwin.

sorry.. this issue is related to aging test. so i had made on aging test mantis.

anyway i close this ticket. from next, i will report it on aging mantis.

Thanks.
